Exploring Types of Heat Exchangers and Their Advantages in Various Industrial Processes

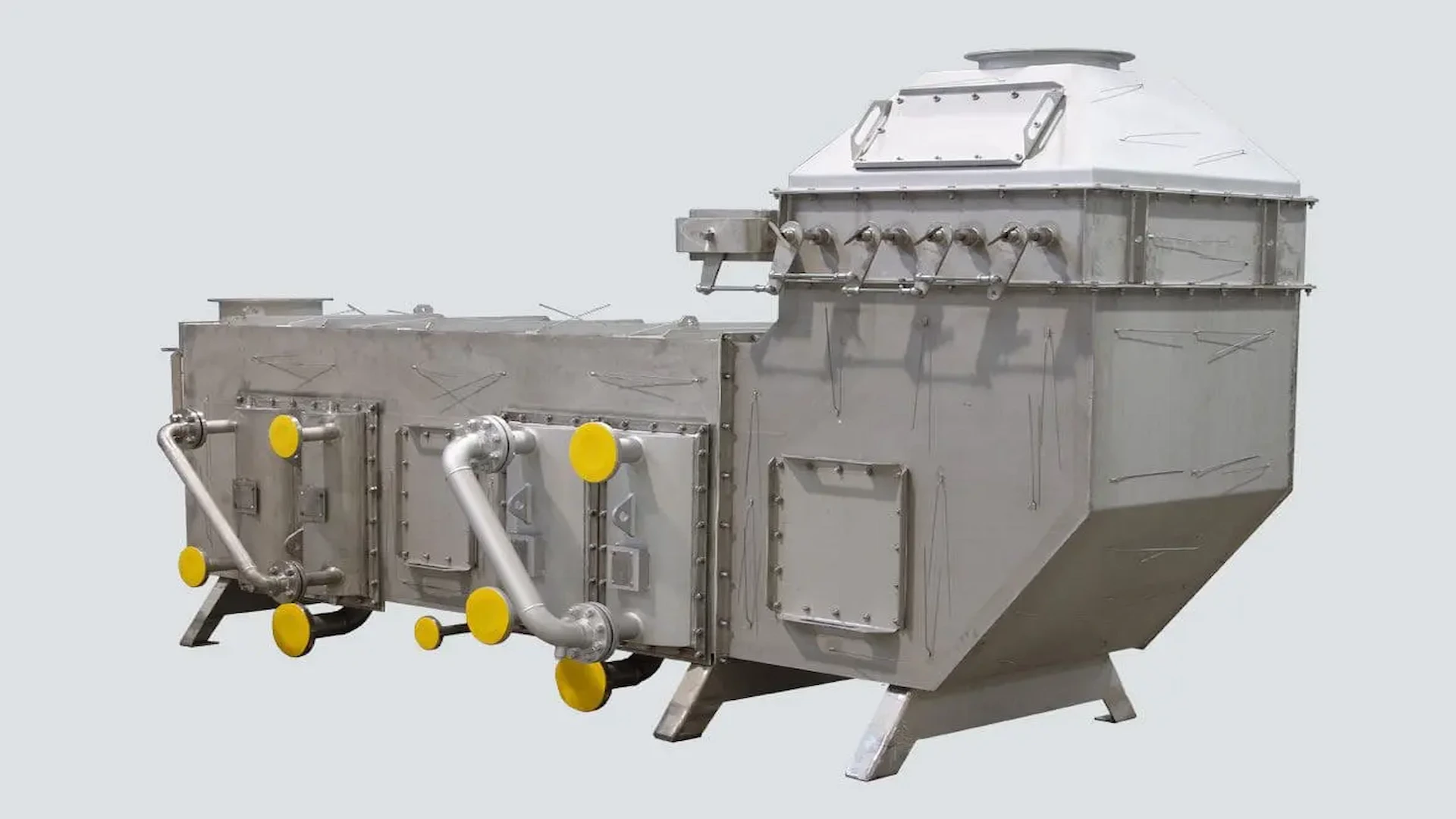

Types of Heat Exchangers

In the intricate world of industrial operations, maintaining precise temperature control is often critical for success. It is where types of heat exchangers step into the limelight. These ingenious devices serve as the unsung heroes of industries, ensuring that various fluids are brought to the desired temperature levels with utmost efficiency.

The concept behind a heat exchanger is elegantly simple yet profoundly essential in various industrial processes. At its core, a heat exchanger acts as a mediator, facilitating the seamless transfer of thermal energy between two distinct fluids while ensuring they remain physically separate throughout the process.

This separation is crucial, as it prevents unwanted mixing or contamination between the fluids, allowing them to retain their characteristics and properties.

Imagine a scenario where hot water must warm another fluid or gas without direct contact. It is precisely where a heat exchanger excels. The heat exchanger ensures efficient and controlled temperature adjustments by enabling heat to travel from the hot water to the target fluid or gas through a barrier, which could be a solid wall or a series of plates or tubes.

The mechanism makes it possible to harness and manage heat energy in various industrial applications, from heating homes and swimming pools to optimizing chemical reactions in manufacturing plants and maintaining the ideal temperature for food processing. Heat exchangers are the unseen orchestrators of temperature control, enabling industries to function efficiently and reliably.

This article delves into the world of heat exchangers, shedding light on their crucial role in industrial processes and the various types that cater to specific needs.

Contact Our Sales Agent

What Is a Heat Exchanger?

Before we dive into the fascinating realm of heat exchanger types, let’s establish a fundamental understanding of what a heat exchanger is and how it operates.

A heat exchanger is a mechanical device designed to transfer thermal energy from one fluid to another without allowing them to mix. These fluids can be liquids, gases, or a combination of both.

A heat exchanger’s primary objective is to raise or lower the temperature of one fluid by extracting or injecting heat from or into another liquid. This ingenious process can serve various industrial purposes, from maintaining precise temperatures in chemical reactions to optimizing the viscosity of crude oil in refineries.

The basic structure of a heat exchanger consists of two fluid channels separated by a solid wall. Heat is exchanged through this wall, and the two fluids never come into direct contact. The energy transfer occurs as the hot fluid releases heat to the more excellent fluid, thus achieving the desired temperature alteration.

Read more: What Is a Heat Exchanger and How Does It Work in Heating and Cooling Systems?

Types of Heat Exchangers

Heat exchangers come in various forms, each designed to meet specific requirements and optimize performance in various industrial applications. Let’s explore some of the most common types of heat exchangers and their unique advantages.

1. Double Tube Heat Exchanger

Double Tube Heat Exchanger
Source: zwirnerequipment.com

Double-tube heat exchangers, or tube-in-tube heat exchangers, are a compact and versatile option commonly used in limited-space applications. As the name suggests, these exchangers consist of two concentric tubes, with one fluid flowing inside the inner tube and the other in the annular space between the inner and outer boxes.

One of the primary advantages of double-tube heat exchangers is their ability to handle high-pressure and high-temperature fluids. It makes them ideal for situations where extreme conditions are a norm, such as in power plants or chemical processing facilities. Additionally, their design allows easy maintenance and cleaning, ensuring efficient and consistent heat transfer over time.

2. Shell and Tube Heat Exchangers

Shell and Tube Heat Exchangers
Source: mavink.com

Shell and tube heat exchangers are among various industries’ most widely used heat exchangers. They consist of a cylindrical shell with multiple tubes running through it. One fluid flows inside the lines (the tube-side fluid), while the other flows around the outside of the boxes (the shell-side fluid).

The critical advantage of a shell and tube heat exchanger is their efficiency and versatility. They can handle various temperature and pressure differentials, making them suitable for applications ranging from HVAC systems to chemical processing. Their robust construction and large surface area for heat transfer ensure reliable and consistent performance over extended periods.

Contact Our Sales Agent to Enquire More about Heat Exchanger

3. Tube-in-Tube Heat Exchangers

Tube-in-Tube Heat Exchangers
Source: teralba.com

Tube-in-tube heat exchangers offer a unique design that’s particularly beneficial in applications where precise temperature control is crucial. In this exchanger type, one tube is enclosed within another, creating two concentric channels for the fluids. This design allows for effective heat transfer while maintaining high thermal control.

Tube-in-tube heat exchangers are often used in laboratories, pharmaceutical manufacturing, and food processing, where maintaining the integrity and purity of the fluids is essential. Their compact size and precise temperature regulation capabilities make them invaluable in these industries.

4. Plate Heat Exchangers

Plate Heat Exchangers
Source: Contromatic.co.id

Plate heat exchangers are a compact and efficient option for rapid heat transfer applications. They consist of multiple thin plates with alternating channels for the hot and cold fluids. The large surface area of these plates enables quick heat exchange, making them ideal for applications where space is limited.

One of the standout advantages of plate heat exchangers is their energy efficiency. They are known for minimizing energy consumption while maximizing heat transfer, making them a cost-effective choice in various industrial settings. Their modular design allows for easy expansion or modification to meet changing needs, making them a versatile solution.

5. Air-Cooled Heat Exchangers

Air-Cooled Heat Exchangers
Source: Contromatic.co.id

This type of heat exchanger works by using surrounding air to cool and condense the substances that are being processed. They are commonly used in locations where there is a cold water shortage. Also, air-cooled heat exchangers are usually utilized when the temperature at the outlet is at least 20°C higher than the ambient temperature. This type of heat exchanger uses electric fans to move air through a network of pipes.

The advantage of using air-cooled heat exchangers is they have a high heat transfer coefficient, typically around three to five times higher than that of the shell-and-tube heat exchanger. For the equivalent heat exchange task, the air-cooled heat exchanger’s heat exchange area is less than half of the heat exchange area of the shell-and-tube heat exchanger.

Heat exchangers are the unsung heroes of industrial processes, silently ensuring the precise control of temperatures essential for countless operations. Understanding the types of heat exchangers and their unique advantages is crucial in selecting the right one for your specific application. Whether you require compactness, efficiency, precision, or versatility, a heat exchanger type is ideally suited to meet your needs.

If you seek ways to bolster your industrial processes, consider exploring Contromatic’s range of efficient heat exchanger solutions. As a reliable provider of heat exchanger solutions in Indonesia, Contromatic can help you achieve the best results and enhance the performance of your industrial operations. Don’t let temperature control be a hurdle; leverage the power of heat exchangers to optimize your processes and ensure success.
