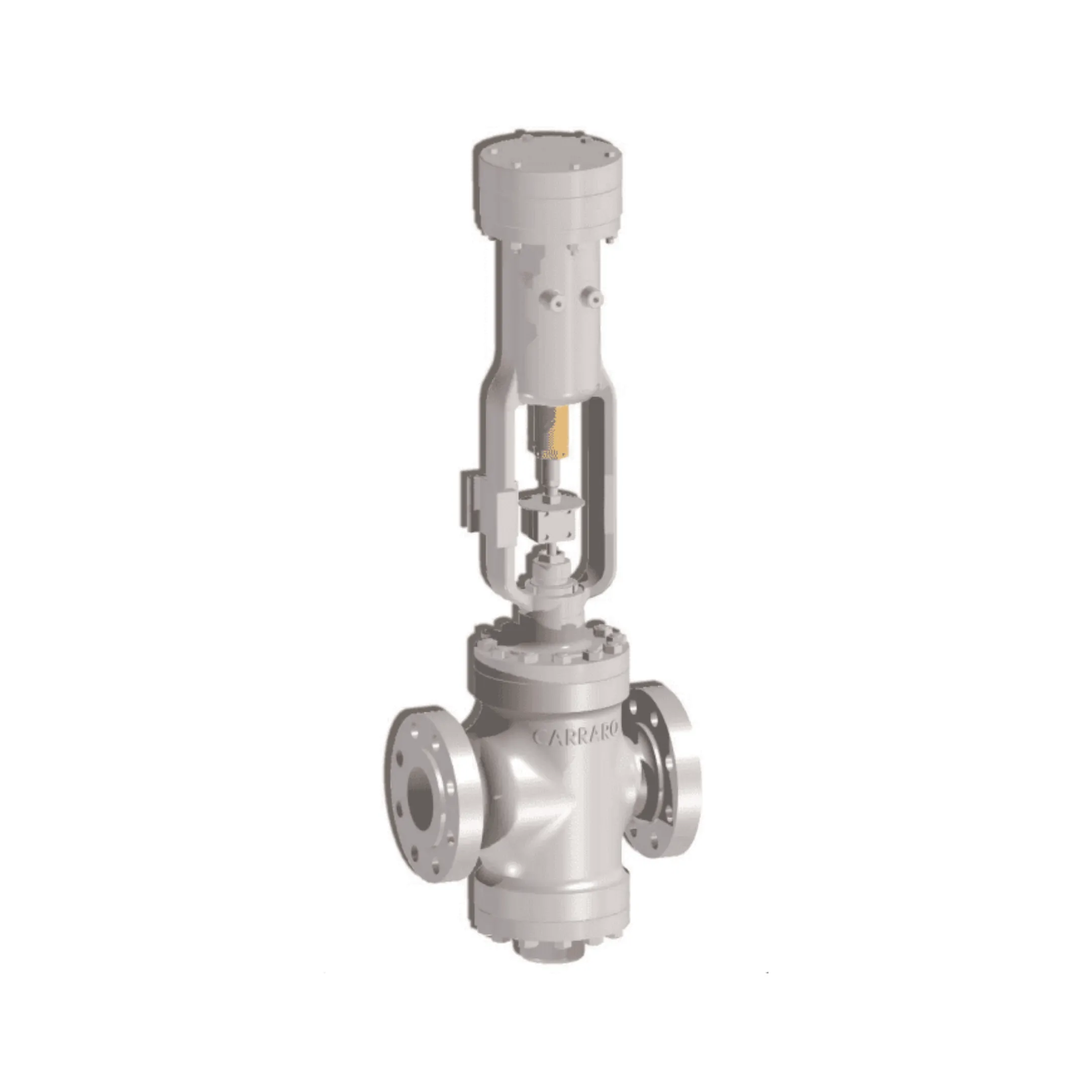

Carraro – MM Direct Operated, Spring Pressure Regulators

MM

• Direct action Regulator, reduction, and back pressure from DN 25 to DN 500
• Single or double seat
• Metal or sof seat
• Special solutions : Cage trim
• ARAMCO APPROVED SINCE 2015

Additional Information
Funtion: Backpressure, Differential, Reducing, Relief

Diameters: From 1” up to 10” (ISA standard), up to 20” (special)

Connections: Flanged (ANSI or PN)

Seat: Double, Single

Max Rating: ANSI 1500

CV: From 6 up to 850 (standard)

Body Material: “exotic” materials, carbon steel, stainless steel

Trim Material: “exotic” materials, stainless steel (std)

Diaphragms: EPDM, FKM, other, polychloroprene

Max Inlet Pressure: 250 barg (rating Classe 1500)

Regulated Pressure Range: 0,08 – 30,7 barg

Min Temperature: -50°C

Max Temperature: 540°C
