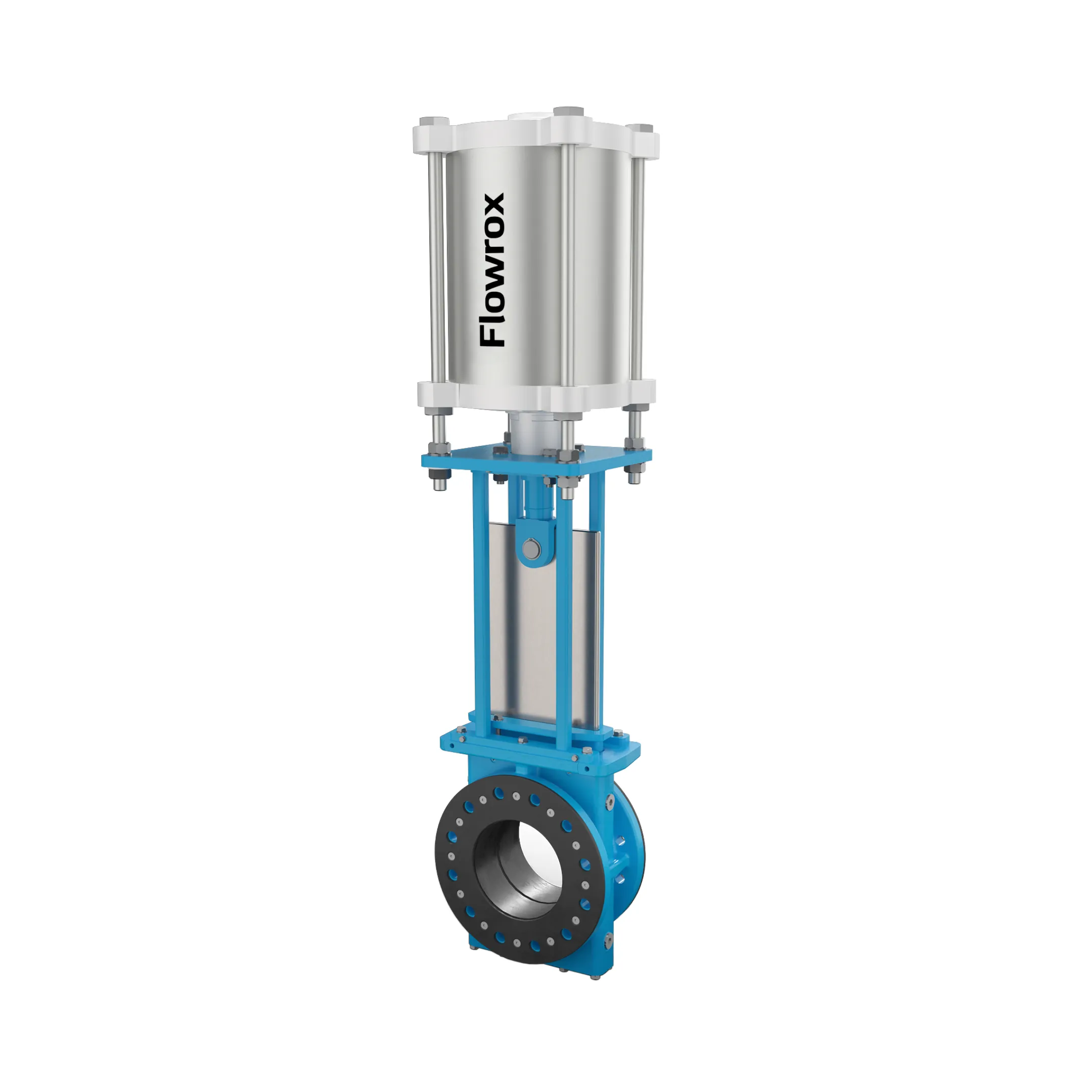

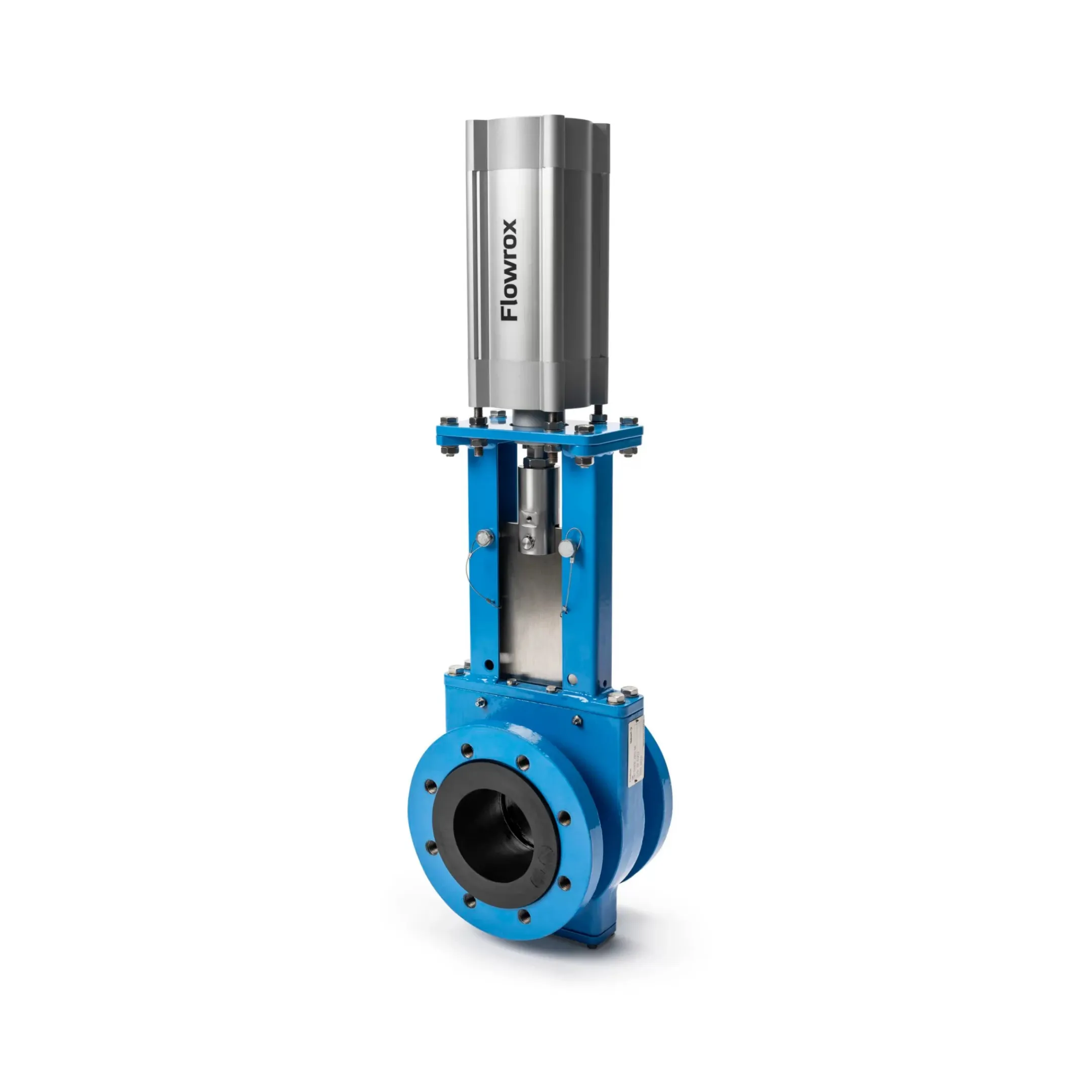

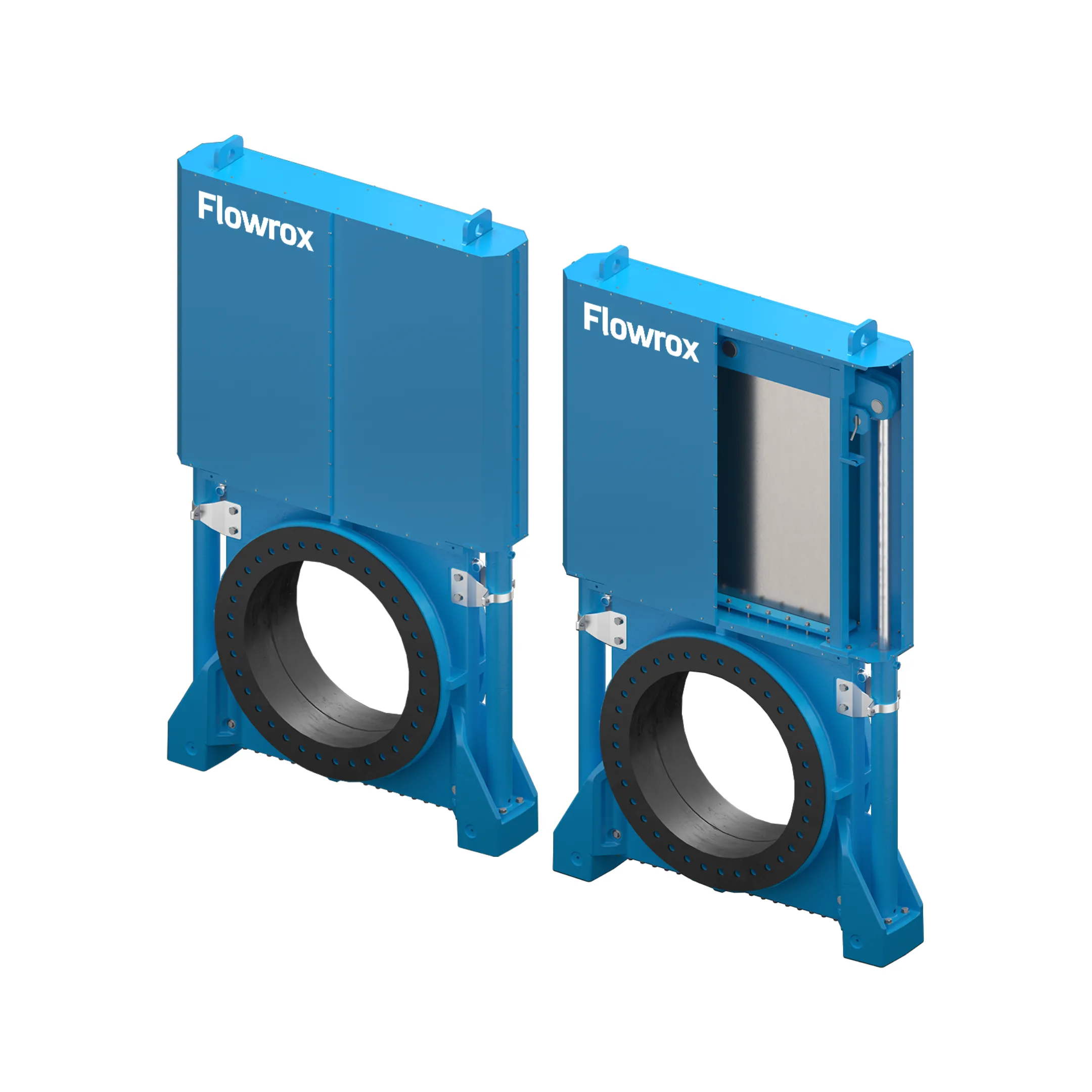

Heavy duty slurry knife gate valve isolates flow even in the most demanding process conditions. The bi-directional flow tolerates backflow and elastomer sleeves on both sides of the gate provide tight shut off. Flowrox knife gate valve follows the concept of the ease of maintenance. The valve body is cast in one piece which eliminates the need for sealing between the body halves. Load distribution ring is integrated into the valve sleeves. The valve contains only two service parts; ring sleeves and secondary seal.
Technical specifications
| Series | SKW | SKF | SKH |
| Size range: | 50 – 600 mm / 2 – 24 in | 80 – 1500 mm / 3 – 60 in | 80 – 600 mm / 3 – 24 in |
| Pressure range: | up to 10 bar (145 psi) | up to 10 bar (145 psi) | up to 20 bar (290 psi) |
| Temperature range: | 0 – 100 °C / 32 – 212 °F | 0 – 100 °C / 32 – 212 °F | 0 – 100 °C / 32 – 212 °F |
