Name: Jamesbury™ – VPVL Series Pneumatic Actuator
Brand: Contromatic
SKU: 22376
Availability: Contromatic
Rating: 5 (1 reviews)

Download Brochure

Download Brochure

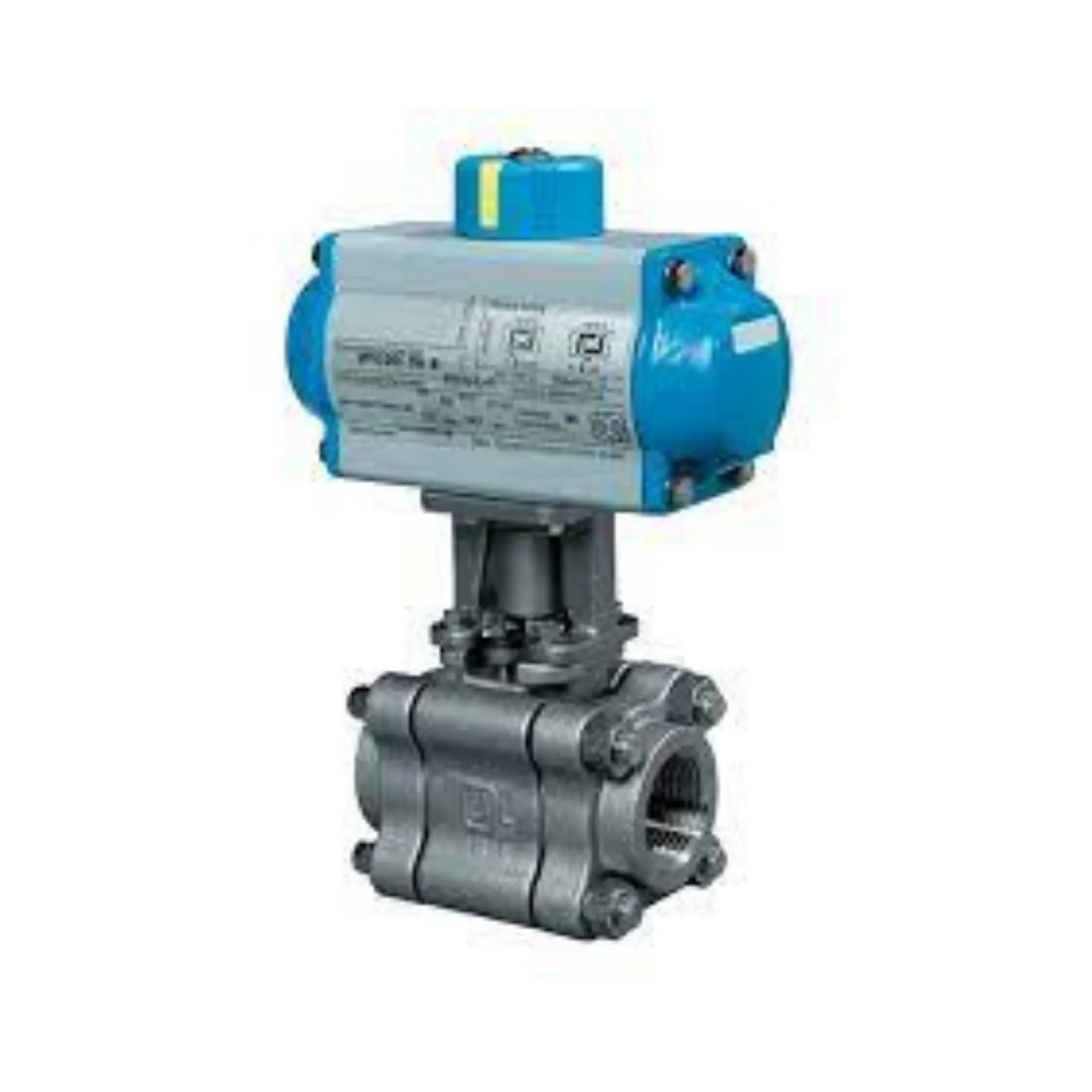

Jamesbury™ – VPVL Series Pneumatic Actuator

Benefits

Features

Modular design utilizing same body and end caps for both double-acting and spring-return versions
Compact and light weight
High cycle life with low friction bearings on all rotating and sliding surfaces
ISO 5211 mounting pattern
ATEX certified
Machined gear teeth provide longest life and smoother operation
Safety contained springs prevent hazards of inadvertent ejection during maintenance
Corrosion resistant with PTFE coated body, polyester coated end caps, and stainless steel fasteners
Adjustable stops for both open and closed positions

Specifications

Torque output	3.2 to 7187 Nm / 2.5 to 5300 lb-ft
Operating pressure	2 to 8 bar / 30 to 116 psi
Standard temperature range	-40 °C to +80 °C / -40 °F to +176 °F
Options	Extended temperature ranges available from -51 °C (-60 °F) up to +15 0°C (+302 °F). Many options available including mechanical lock-out, 100% adjustable stop, and various protection coatings.
