Neles™ – Valve Controllers Axiom™ AMI

Highly reliable integrated discrete valve controller offers the ultimate in value with full range of capabilities and features
Features

• Epoxy coated anodized aluminum enclosure
• Universal voltage solenoid and switching
• Convenient push button switch setting
• Robust solenoid valve with standard rebreather
• Diagnostic versions available
• Space efficient design
• AS-Interface with Wireless Link

Benefits

• Robust enclosure tolerates most process environments
• Quick and convenient set-up with push button switch setting
• Universal voltage reduces inventory and enables easy standardization
• Magnetic drive eliminates wear bushings and offers ultra-high reliability
• Rebreather system minimizes corrosive ingestion for single-acting actuators
• Diagnostic versions aid in trouble-shooting and anticipate problems to increase plant uptime and reduce maintenance costs
• Compact design minimizes valve-actuator assembly dimensional envelope

Control and monitor an automated on/off valve in all process areas

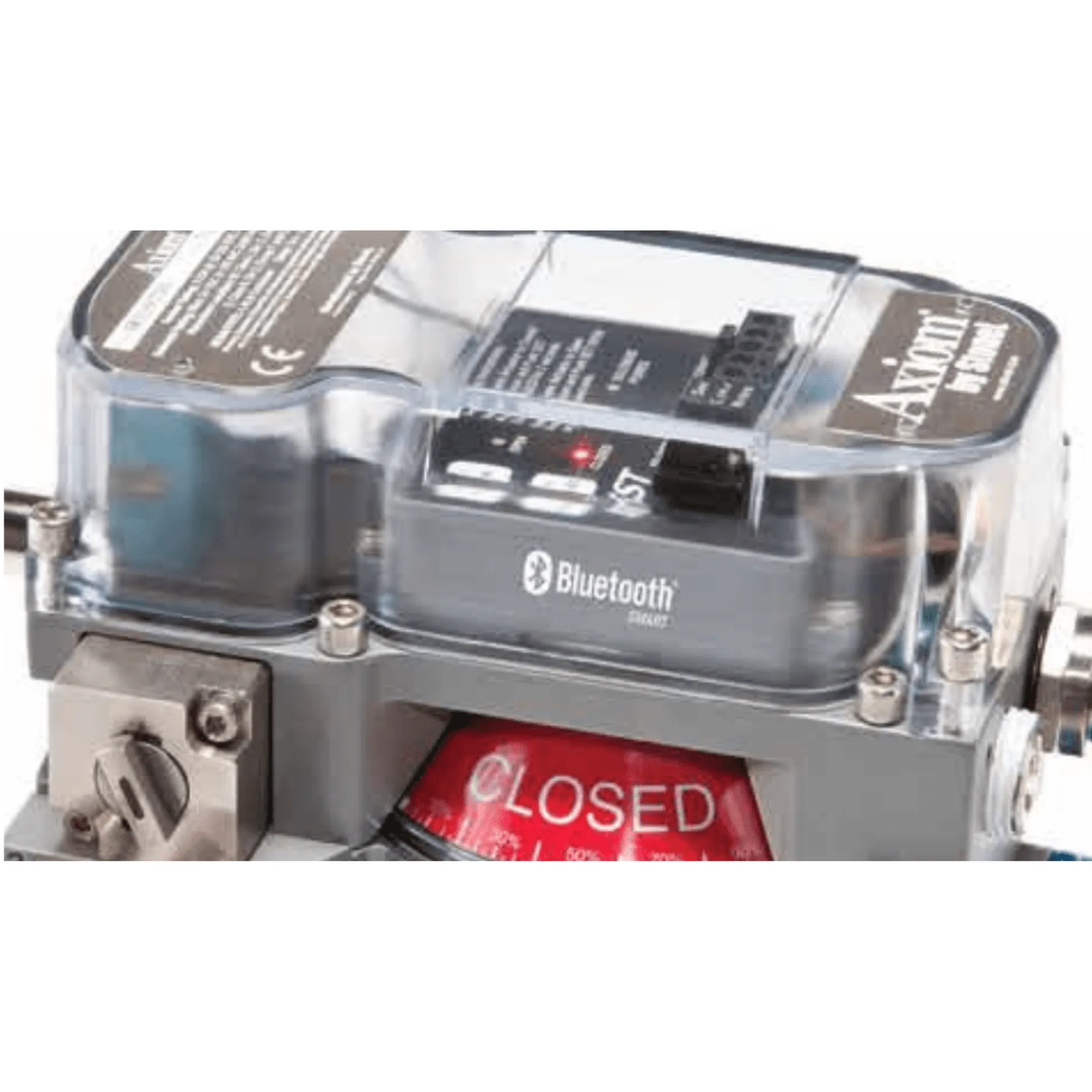

The Axiom monitors and reports valve position with Visual indicator and signals to the controller. The Axiom AX has integral single or dual coil solenoid valves to control position of the actuated valve.

Specifications
AMI33/ AMI35: Universal voltage switching and solenoid
AMI44: Namur sensors (7-24 VDC)
Communication options: AS-Interface, Foundation Fieldbus, DeviceNet and Hart
Temperature range: up to -40 °C … +85 °C
Material: Epoxy coated anodized aluminum housing, with polycarbonate cover
Flow Capacity: 0.7Cv
Hazardous area approvals: Ex n, Ex ia (for complete list see technical bulletin)
