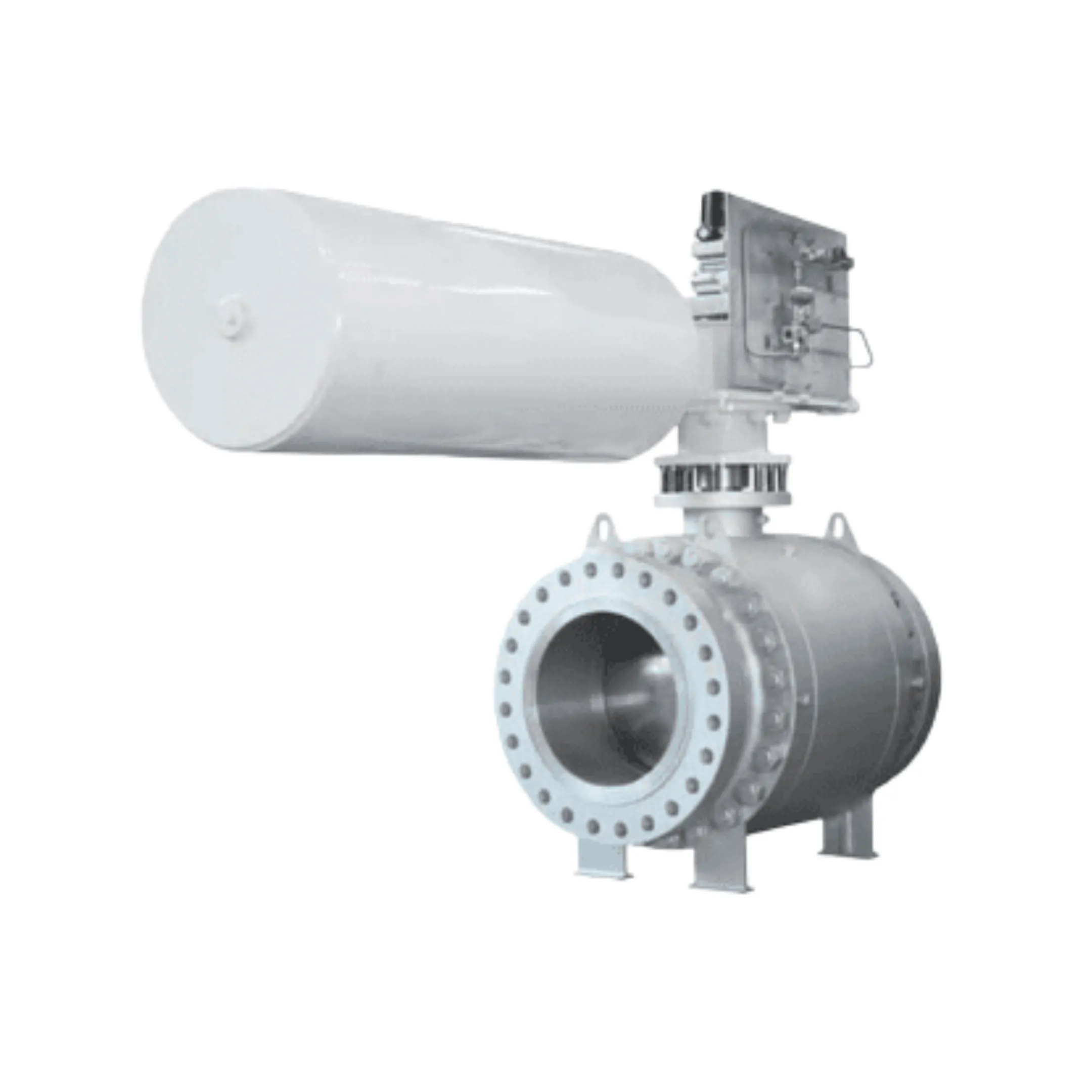

Perar – Shutdown Valve

The Emergency Shut Down Valves (ESDV, ESD, ESV, SDV) are used to isolate pressure and flow from a particular source during an overpressure situation or detection of a dangerous event. ESD valves are integrated into the design of the plant system equipment and can be installed in-line to any location upstream, midstream or downstream.

API spec 6D Ball Valve Trunnion supported ball, forged steel, 3 pieces split body side entry, metal to metal or soft seated sealing design self relieving spring loaded seats or double piston effect sealing system, anti-static device, anti-blow-out proof stem double block and bleed or block and bleed, venting and drain fittings, self lubricating stem and trunnion bearings to assure low operating torque throughout entire valve life, fire safe design to BS 6755.
