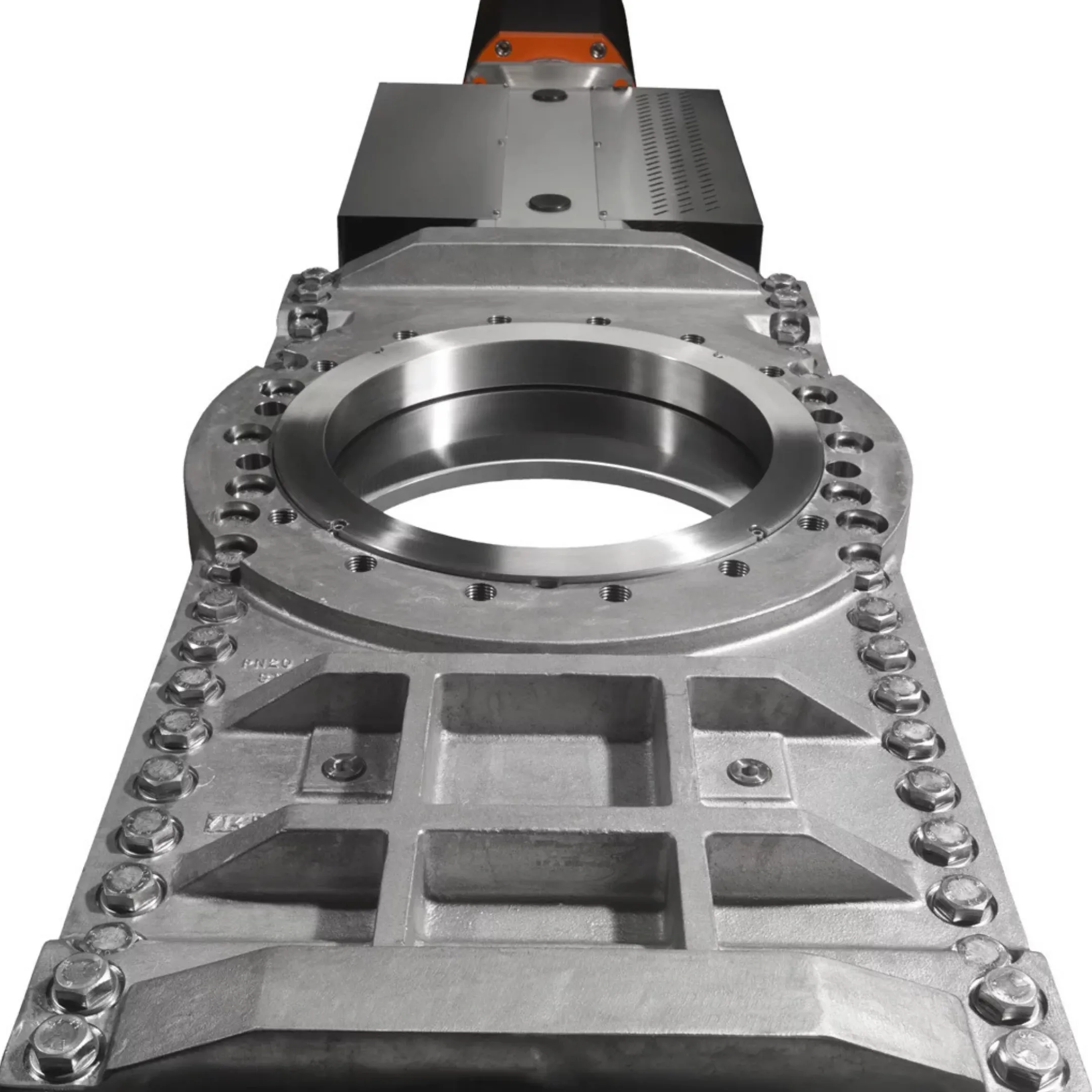

Stafsjo – Knife Gate Valve HX Series

Stafsjo – Knife Gate Valve HX Series

Type : HX-E
Face to face dimension according to stafsjo manufacturing standard

Size : DN200 – DN400 / 8” – 16” (please ask of higher size)

Body Material : EN 1.4408(HX-E); Duplex; SMO254; WCC; Titanium gr2

Gate Material : SS316; Ss304; Duplex; SMO254; Titanium gr2

Seat Material : PTFE with o-ring Nitrile; PTFE with o-ring Viton

Flange Drilling : EN 1092 Pn16, Pn20, Pn25, PN 40, Pn50, ANSI Class 150, 300

Actuator (Manual) : Hand wheel

Actuator (Automatic) : Pneumatic Cylinder

An extreme high pressure valve for really demanding applications. suitable for severe operating conditions with media such as pulp (pulp concentration >5%), liquor, reject, powder and ash.
