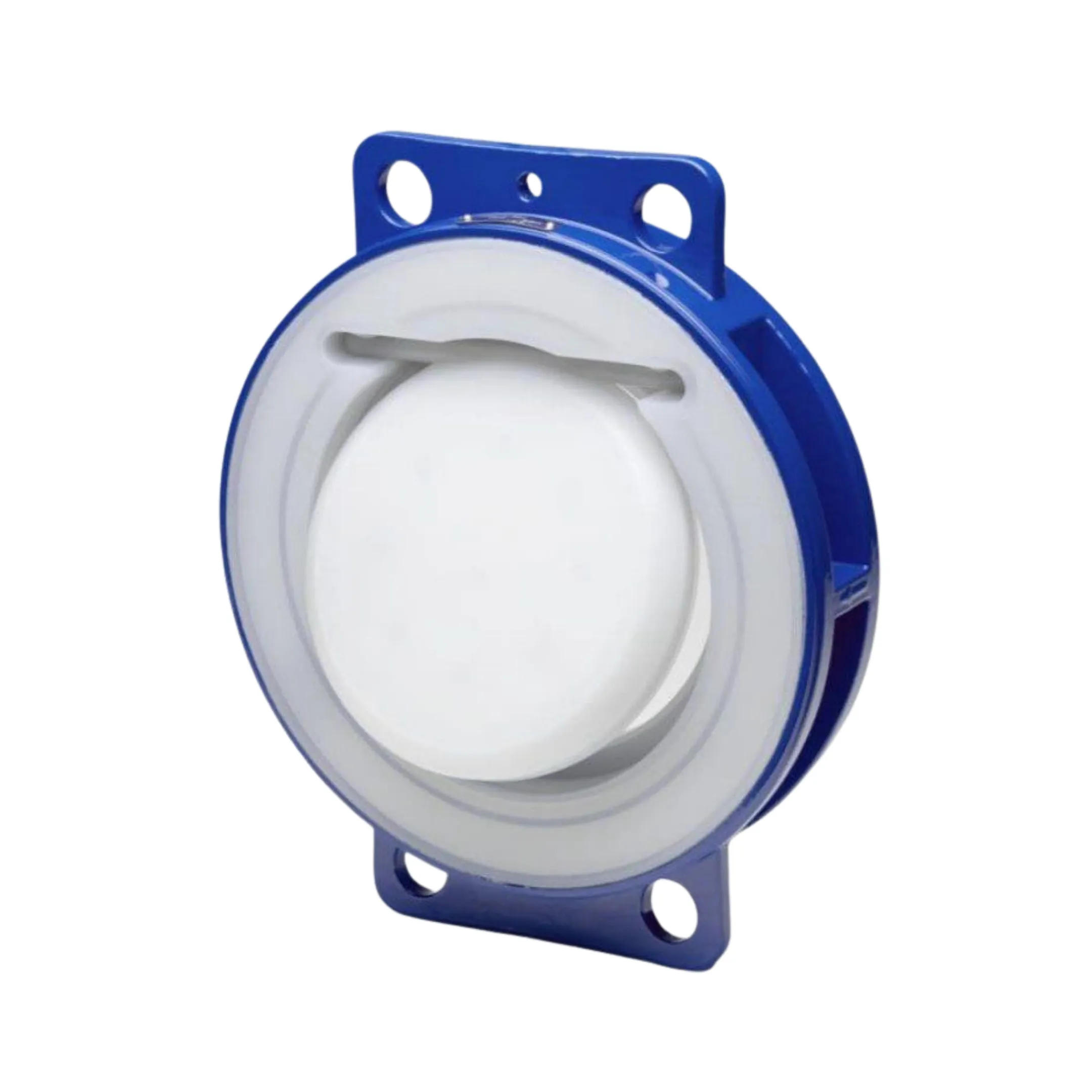

Swing Check Valves SSC
Fully lined Swing Check Valves for safe non-return flow control of corrosive process media.

Main features

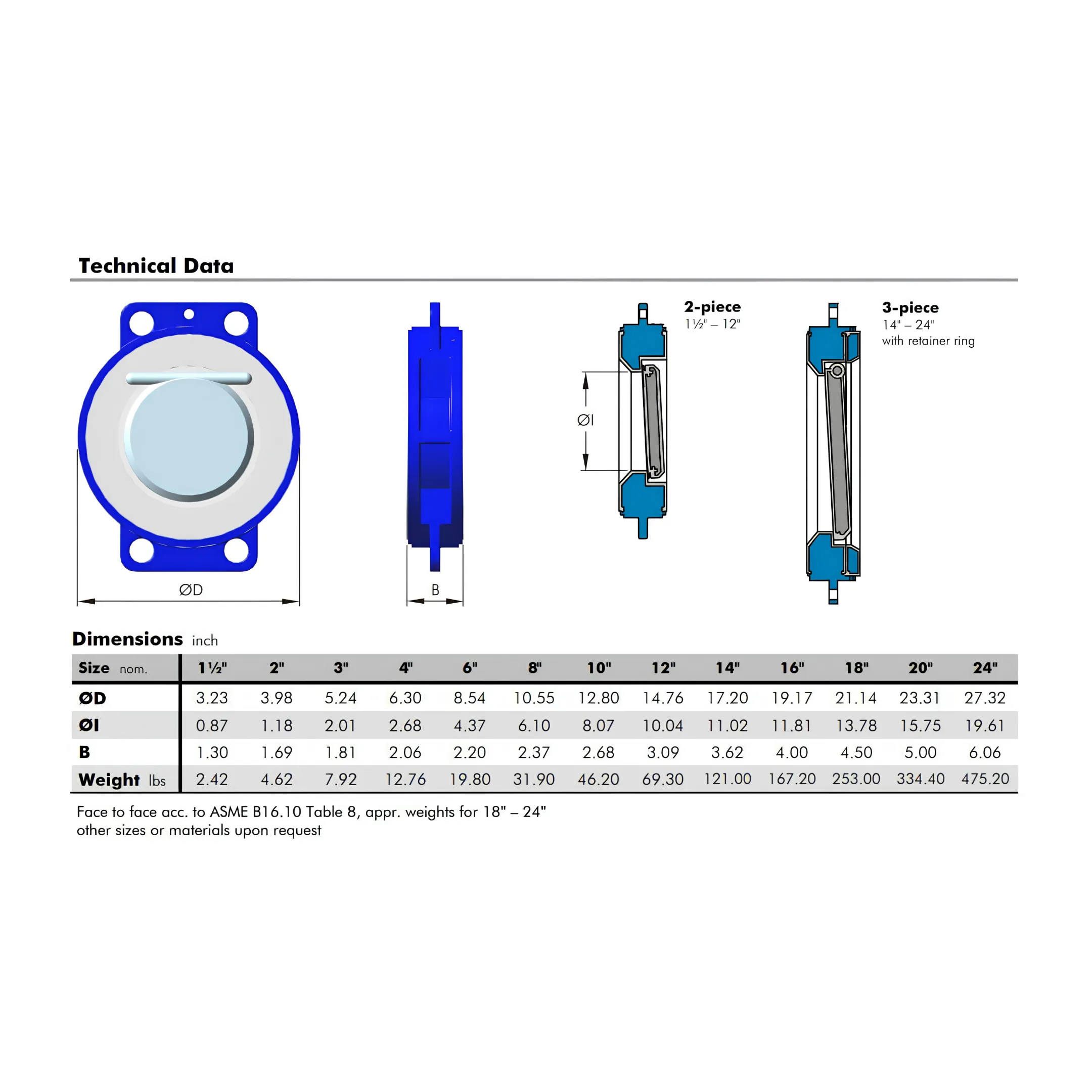

• Wafer-style body, two- and three-piece, DIN/ANSI combined
• Centering lugs for safe installation
• Tilted disc (to shut by gravity even when pipe isn’t completely level)
• Self-retaining disc, no counter flanges needed to hold the disc in place
• Horizontal or vertical installation
• Integrated sealing lip (to seal at low differential pressures)

Options
Body Stainless steel casting 1.4408 AISI 316 CF-8M
Valve disc SS316L, Titanium Grade 2, Hastelloy C
